Electric Winches

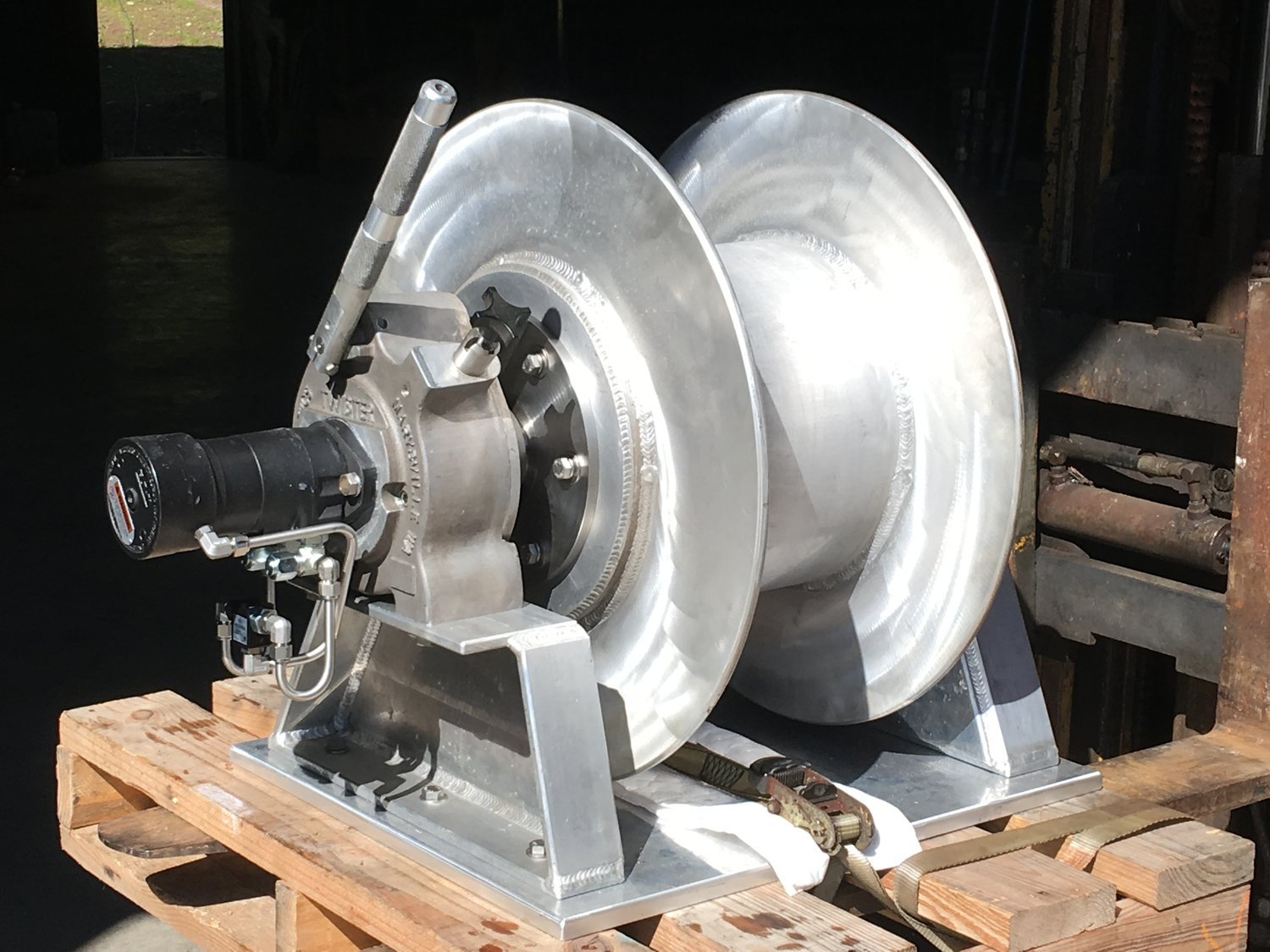

Sea Gear electric winches are customizable to your unique requirements. Rugged yet portable and built to last. Hydraulic winches are also available.

Specifications:
Voltage Options: 12/24 VDC, 120/220 AC
Gear Motor Options: .50, .75 and 1 HP
6061-T6 Aluminum w/stainless steel hardware
Belt Driven
Drum Core: 10.75” Diameter
Drum Flange Diameter: 20-24.5”
Drum Core Length: 8-11”
Drum Capacity: 200-400M .332 cable/2” freeboard

Performance:
200-450+ lbs. Pull at Core
200-450+ lbs. Pull at 100M
Speed: 20M to 40M/Min at 100M of Cable

Dimensions:
Weight: Approx. 110-170lbs
Frame Width: 12-16”
Frame Length: 37”
Frame Height: 26”
Slip Ring Guard Protrudes 6.5”

Options:
Variable Speed Motor Controller on AC options
Variable Bluetooth Motor Control (12VDC only)
Boom Extension
String Block

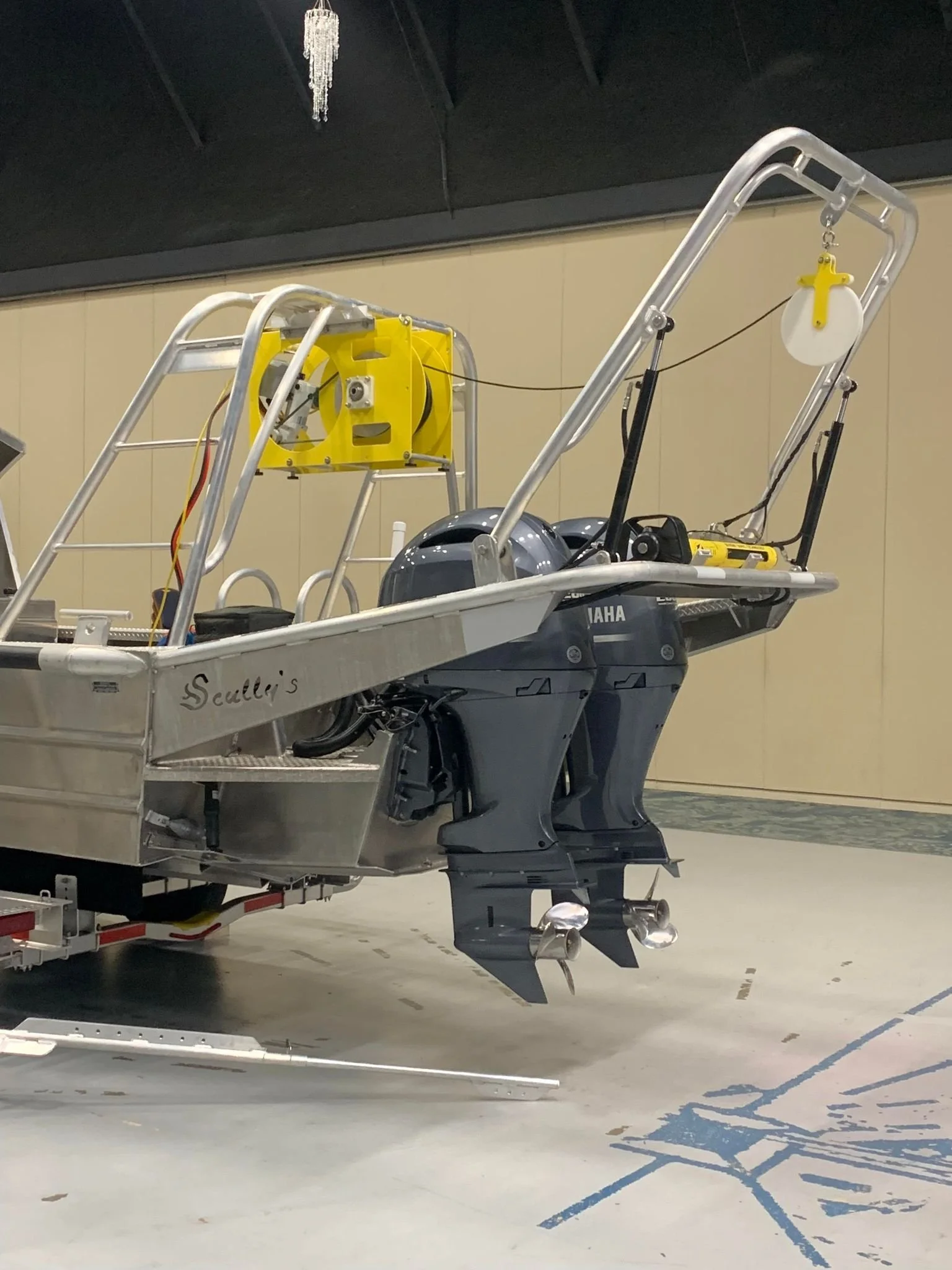

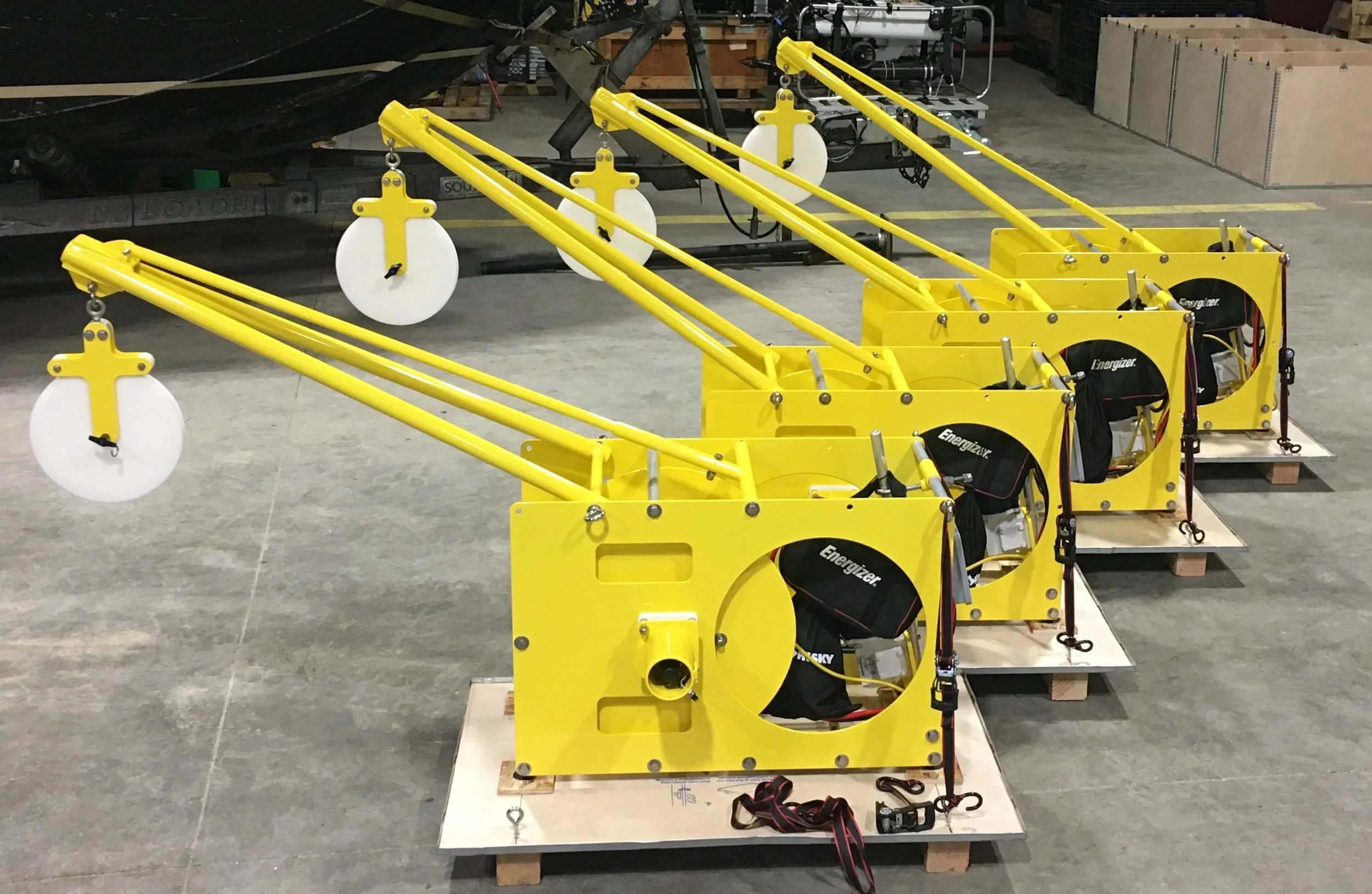

String Blocks & Booms

12 or 16” diameter string block/pulley - pictured here with boom extension option.

String Block Specifications:
12” or 16” Diameter
6061 T6 Aluminum
Stainless Steel Hardware
Delron Pulley
Powder Coated

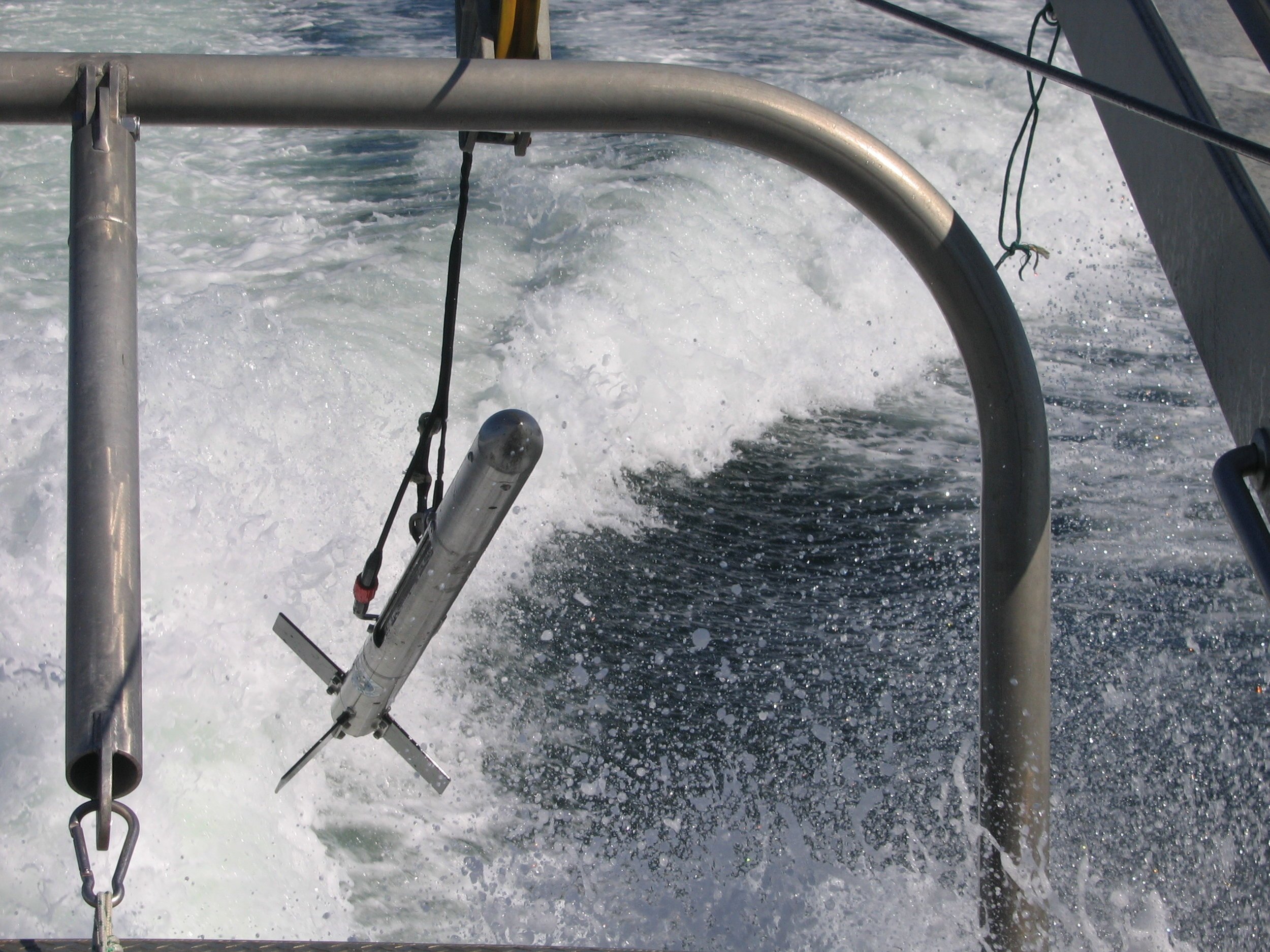

Towfish

Heavy duty commercial towfish - stainless, aluminum and neutrally buoyant
